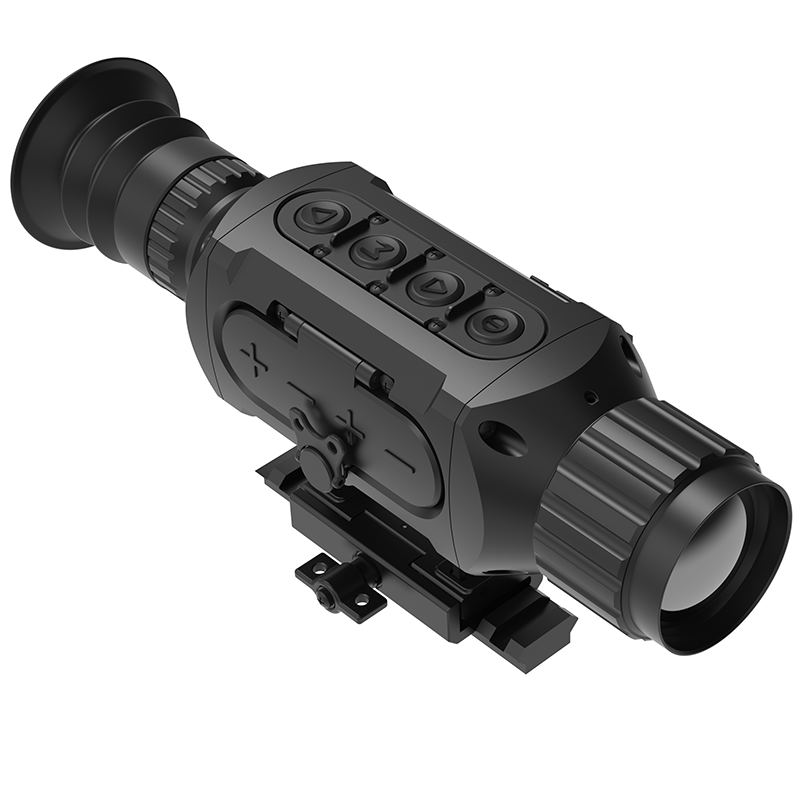

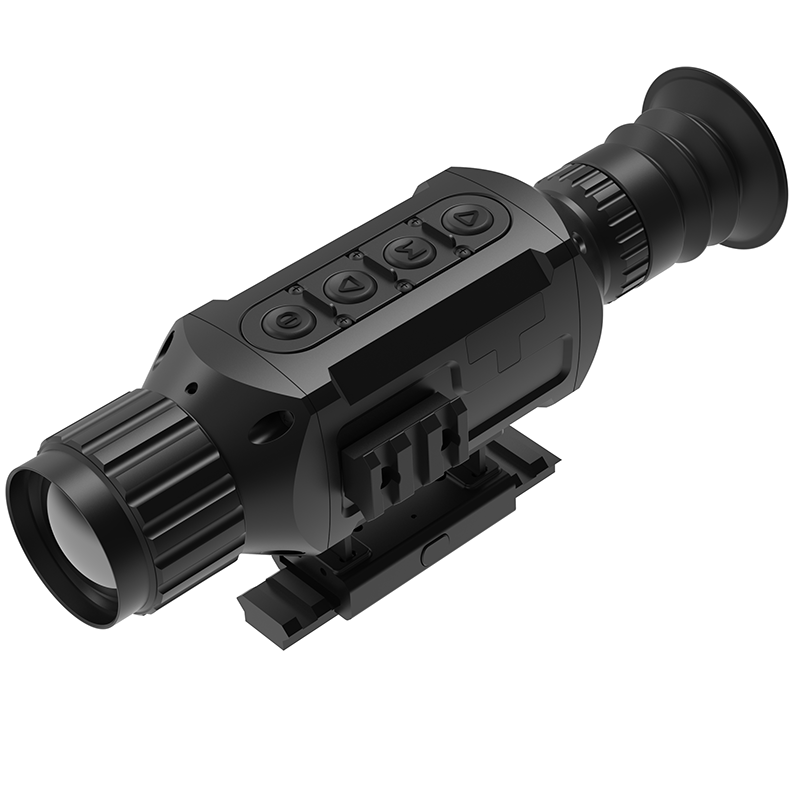

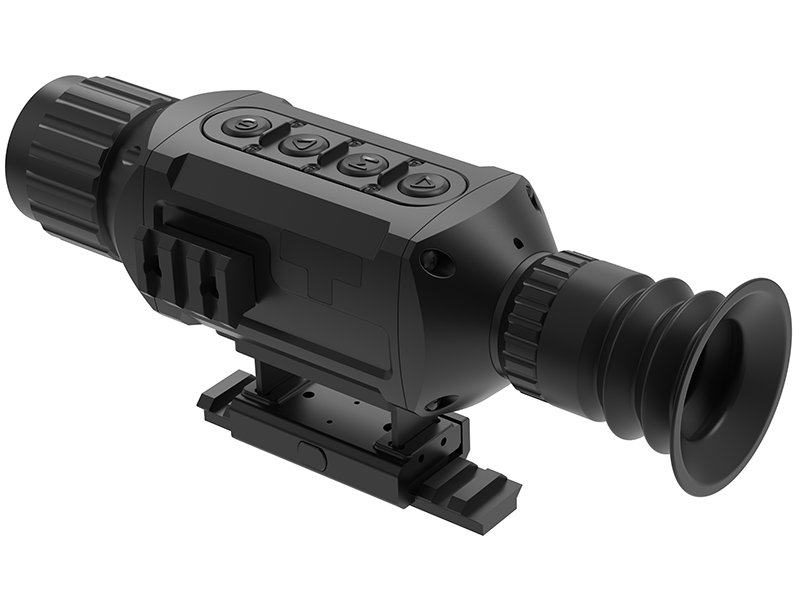

GS Series Telescopic sight for Infrared Thermal Imaging Gun

Manufacturer: 4D Systems Pty Ltd
Flash-Turtle NO: GS
Package:
Datasheet: PDF
Stock: 2586
Description: GS Series Telescopic sight for Infrared Thermal Imaging Gun

In Stock

Please send RFQ , we will respond immediately.

Purchase & Inquiry

Transport

User guide

Purchase

You may place an order without registering to Flash-Turtle.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time.

SPECIFICATIONS

Parameters

GS infrared thermal imaging gun Telescopic sight

VERSION	Modification Date	Author	Business Reviewer	Notes
V1.0	202305

Remark Copyright Notice:

The copyright of this document is owned by Shenzhen Dianyang Technology Co., Ltd. The article involves proprietary information of Shenzhen Dianyang Technology Co., Ltd. Without written permission from Shenzhen Dianyang Technology Co., Ltd., no unit or individual is allowed to use or disclose this document, as well as any images, tables, data, and other information contained in this document.

Product Introduction

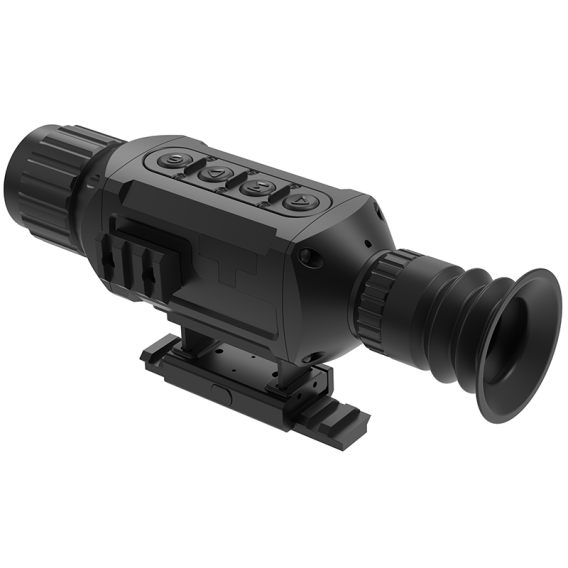

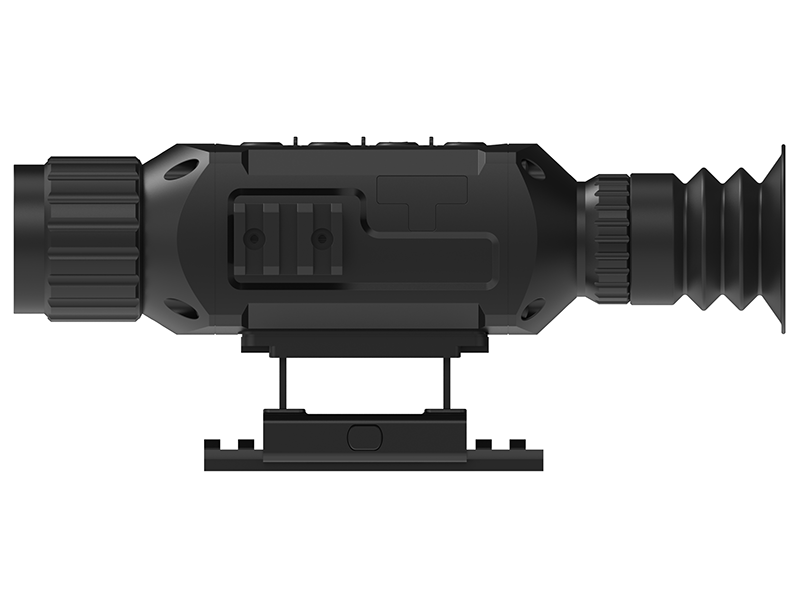

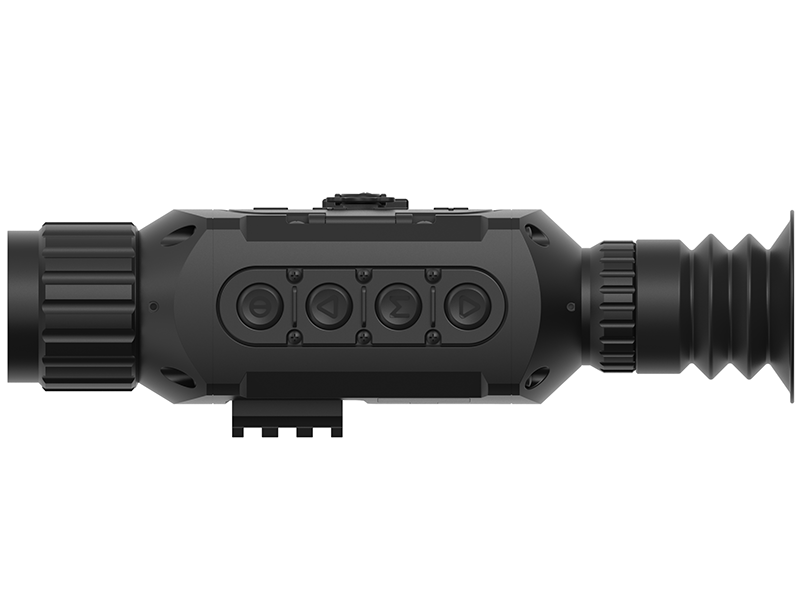

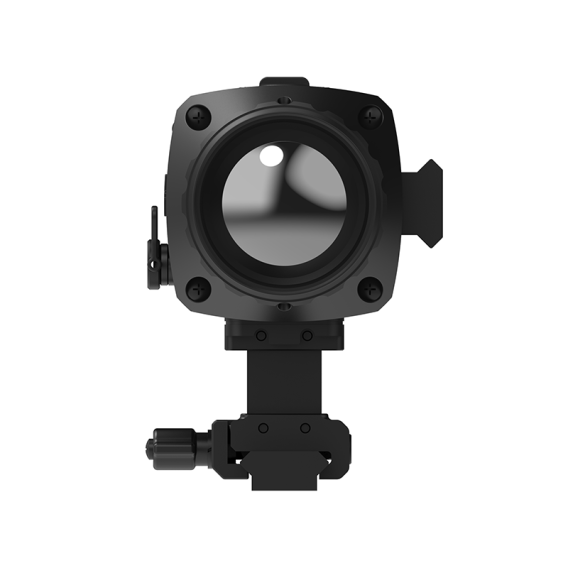

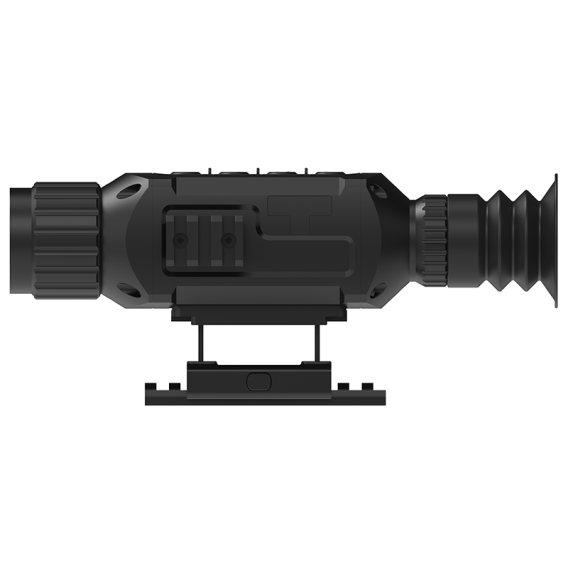

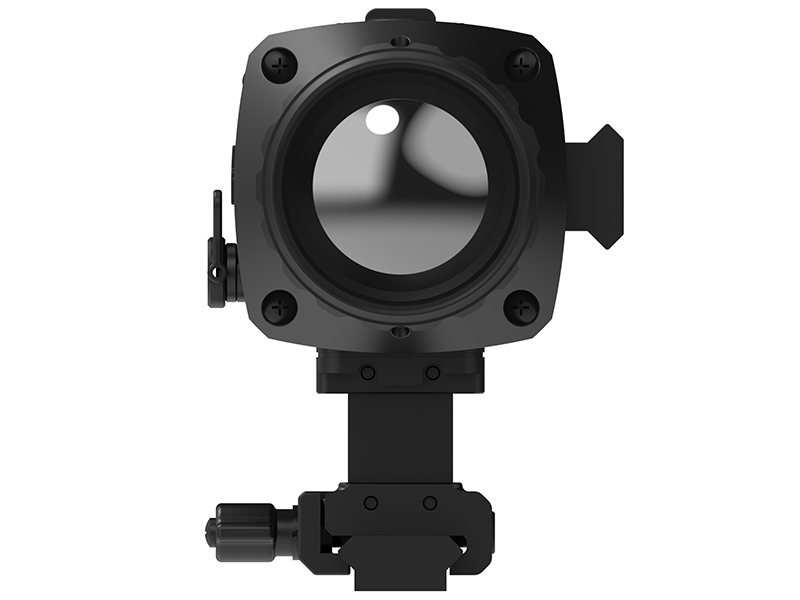

GS series infrared thermal imaging Telescopic sight has a variety of models to choose from to meet the requirements of short, medium and long operating distances. At the same time, it also provides the function of external Laser rangefinder, which can automatically coordinate with the sighting and delineation to achieve fast and accurate shooting. This product has a strict moisture-proof and waterproof design, suitable for all-weather indoor and outdoor use.

■ Detachable battery, easy to replace, suitable for outdoor use
■ Four different shock absorbers can meet the needs of different firearms
■ Multiple models with different functions to meet the needs of users
■ External laser ranging, flexible application

Specification parameters

The specifications and parameters of GS series infrared thermal imaging gun Telescopic sight are as follows:

	GS-02S	GS-02M	GS-03S	GS-03M	GS-06S	GS-06M
Resolution Ratio	256*192	256*192	384*288	384*288	640*512	640*512
Working Band	8~14um
Frame Rate	25Hz
NETD	45mK@25℃
Shot	11mm F/1.0		25mm F/1.0 35mm F/1.0 Two options available		35mm F/1.0 50mm F/1.0 Two options available
Lens Adjustment	Adjustable focal length, closest imaging 1 meter		Adjustable focal length, closest imaging 2 meters
Viewing Angle
Hot Track	support
Swatches	6 night vision color palettes: Iron Red, White Heat, Black Heat, Desert Green, Night Vision Rainbow, Red Heat, etc
Eyepiece Resolution	1024*768
Eyepiece Refractive Adjustment	Adjustable refractive index, supporting up to 600 degree myopia
Image Enlargement	1X，2X，4X		1X，2X，4X，8X
Battery	4 CR123A detachable batteries, operating for 5 hours
Charging Method	External battery pack charging
Laser Ranging	External laser ranging, connected through USB interface
WIFI	Not Supported	support	Not Supported	support	Not Supported	support
photograph	support
Picture Recording	Not Supported	support	Not Supported	support	Not Supported	support
Storage	Built in EMMC 32G storage
Mobile Browsing	Not Supported	support	Not Supported	support	Not Supported	support
Waterproof And Dustproof	IP67
Product Size	200mm x 80mm x 110mm

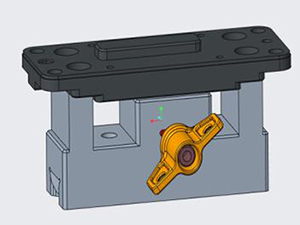

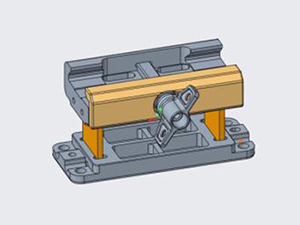

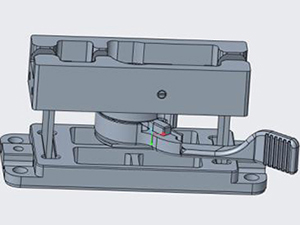

Shock-absorbing Bracket	Different shock absorption brackets can be configured in different ways
Net Weight	420g		460g		460g
Package Size	270mm x 150mm x 120mm
Gross weight (including color box packaging)	970g
Interface	USB Type-C (supports data transfer), HDMI interface

Precautions:

1.Do not point the lens and eyepiece of the Thermographic camera directly at the sun, laser, electric welding and other high-intensity radiation sources when the machine is turned on or off, or the damage will not be guaranteed. Thermal imaging should cover the lens cover in a timely manner when not in use.

2. Do not point the lens and eyepiece of the Thermographic camera directly at the sun, laser, electric welding and other high-intensity radiation sources when the machine is turned on or off, or the damage will not be guaranteed. When the thermal imaging device is not in use, the mirror should be covered in time. 2. When the Thermographic camera is not in use and during transportation, please place the Thermographic camera in a protective packaging box to avoid damage

3. When not using thermal imaging for a long time, please remove the battery.

4. Wiping the thermal imaging lens requires the use of alcohol wiping solution
